EK Water Blocks EK-XRES 140 Revo D5 PWM (incl. sleeved pump)

157,99

EK-XRES 140 D5 PWM (incl. pump) is a High-Performance water cooling pump with integrated reservoir. This unit offers increased hydraulic performance (up to 15 %) compared to original factory top. This unit has black sleeved cables.

Catégories : , GTIN: 3831109843314

Description

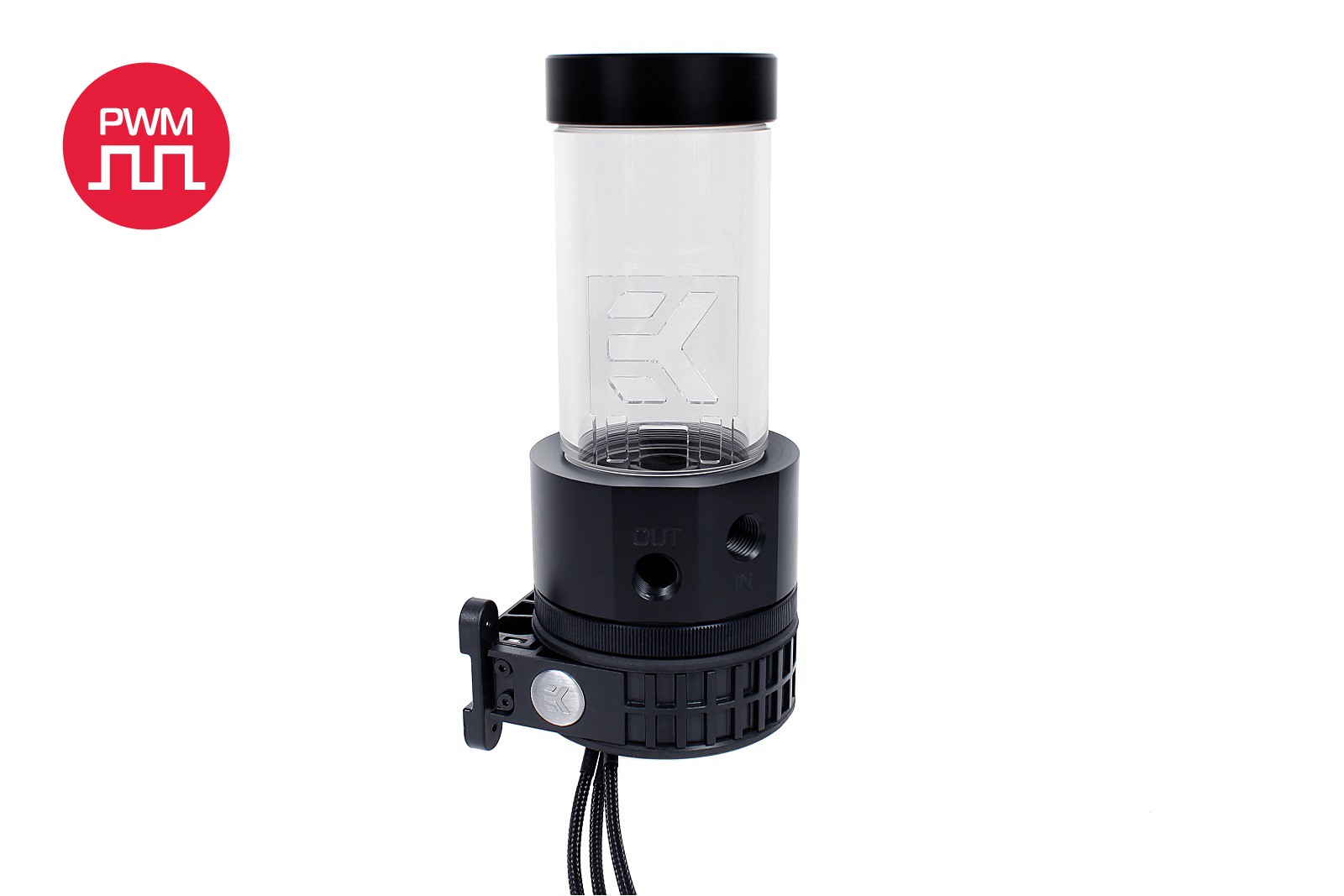

EK-XRES 140 Revo D5 PWM is a High-Performance water cooling pump with integrated reservoir. The core of the unit is the market-proven Xylem D5 PWM water pump. This unit offers increased hydraulic performance (up to 15 %) compared to original Xylem D5 PWM.

The EK-XRES Revo D5 series features a fully rounded design thus offering greater usability, allowing installation at any angle within 360° of rotation. Special rubber shock absorber is used to de-couple the main pump body from the mounting clip for silent operation, free of vibration induced noise. Additionally, horizontal and vertical positioning are supported for easier tube routing possibilities.

EK-XRES 140 Revo D5 pump reservoir combo can also be upgraded with either:

  • EK-UNI Pump Bracket (120mm fan) Vertical – For horizontal or vertical installation on any position with 120mm type fan hole pattern
  • EK-UNI Pump Bracket (140mm fan) Vertical – For horizontal or vertical installation on any position with 140mm type fan hole pattern
  • EK-UNI Pump Bracket (120mm fan) – For installation with only one orientation on any position with 120mm type fan hole pattern
  • EK-UNI Pump Bracket (140mm fan) – For installation with only one orientation on any position with 140mm type fan hole pattern

Pump electrical and mechanical properties:
– Motor: Electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 23W

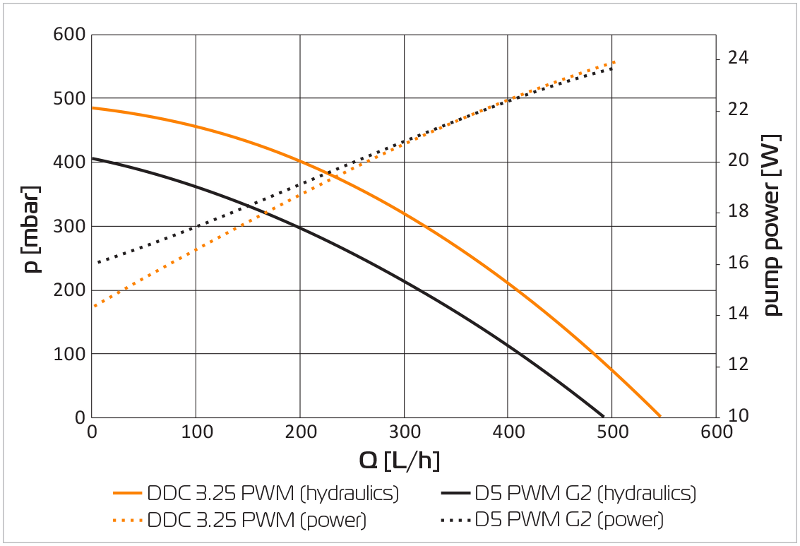

– Maximum pressure head: 3.9m
– Maximum flow: 1500L/h
– Maximum system temperature: 60°C
– Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal

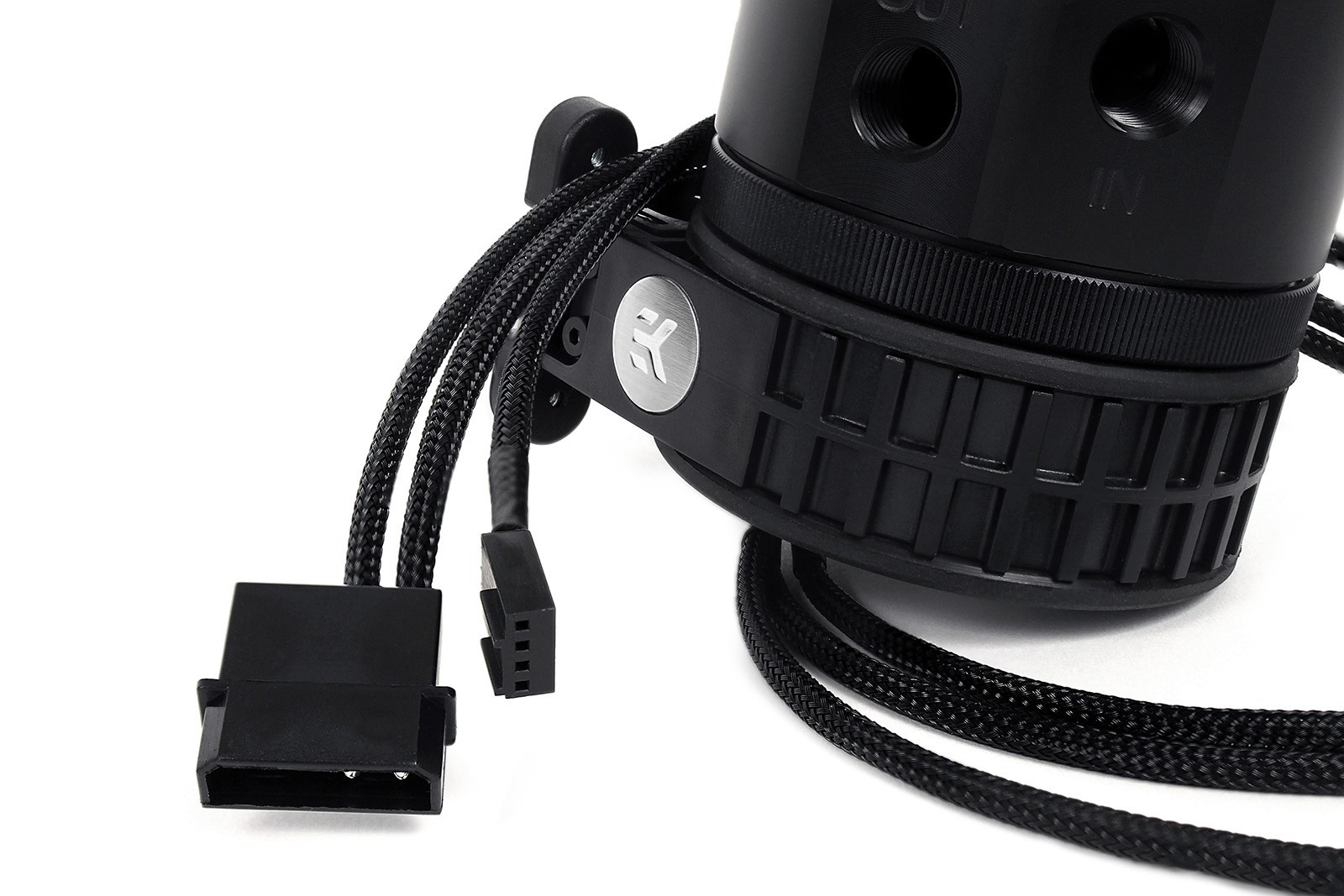

– Power connector:  4-Pin Molex- and 4-Pin PWM FAN connector

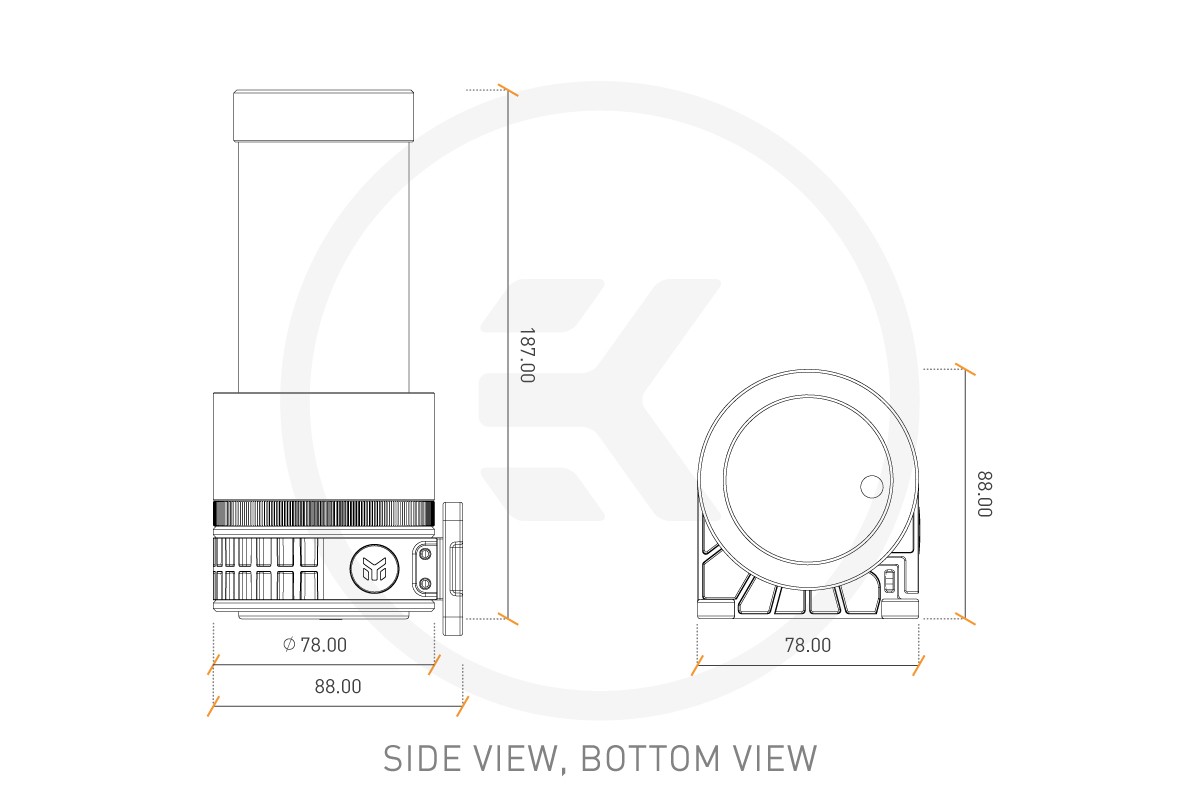

Technical specifications:
– Reservoir diameter 60mm
– Reservoir free volume: ~ 205mL
– Overal unit height: 190mm
– Mounting hole pattern: 65x34mm

Operational regime:

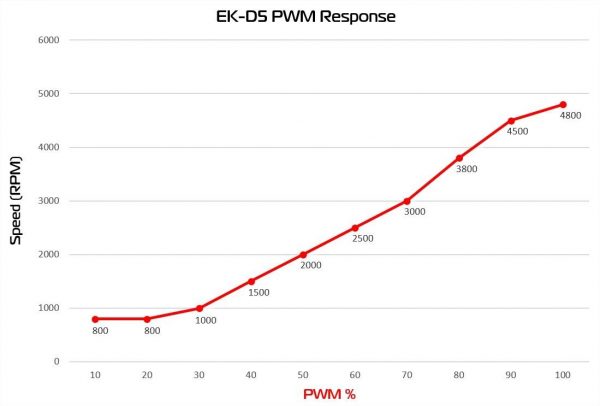

– PWM duty cycle: ~ 20-100%
– Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:

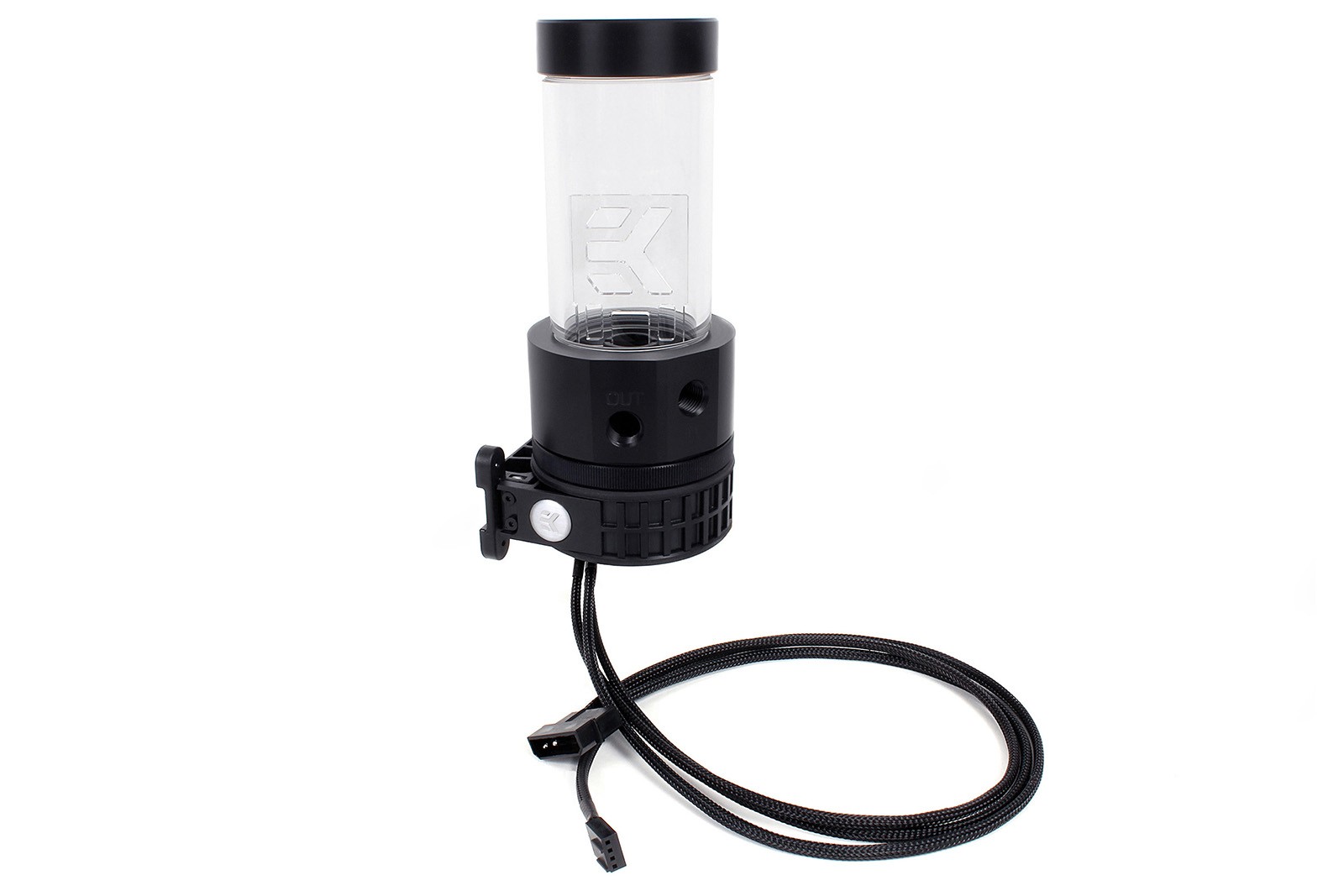

– EK-XRES 140 Revo D5 PWM (incl. pump) – power cable with black sleeve

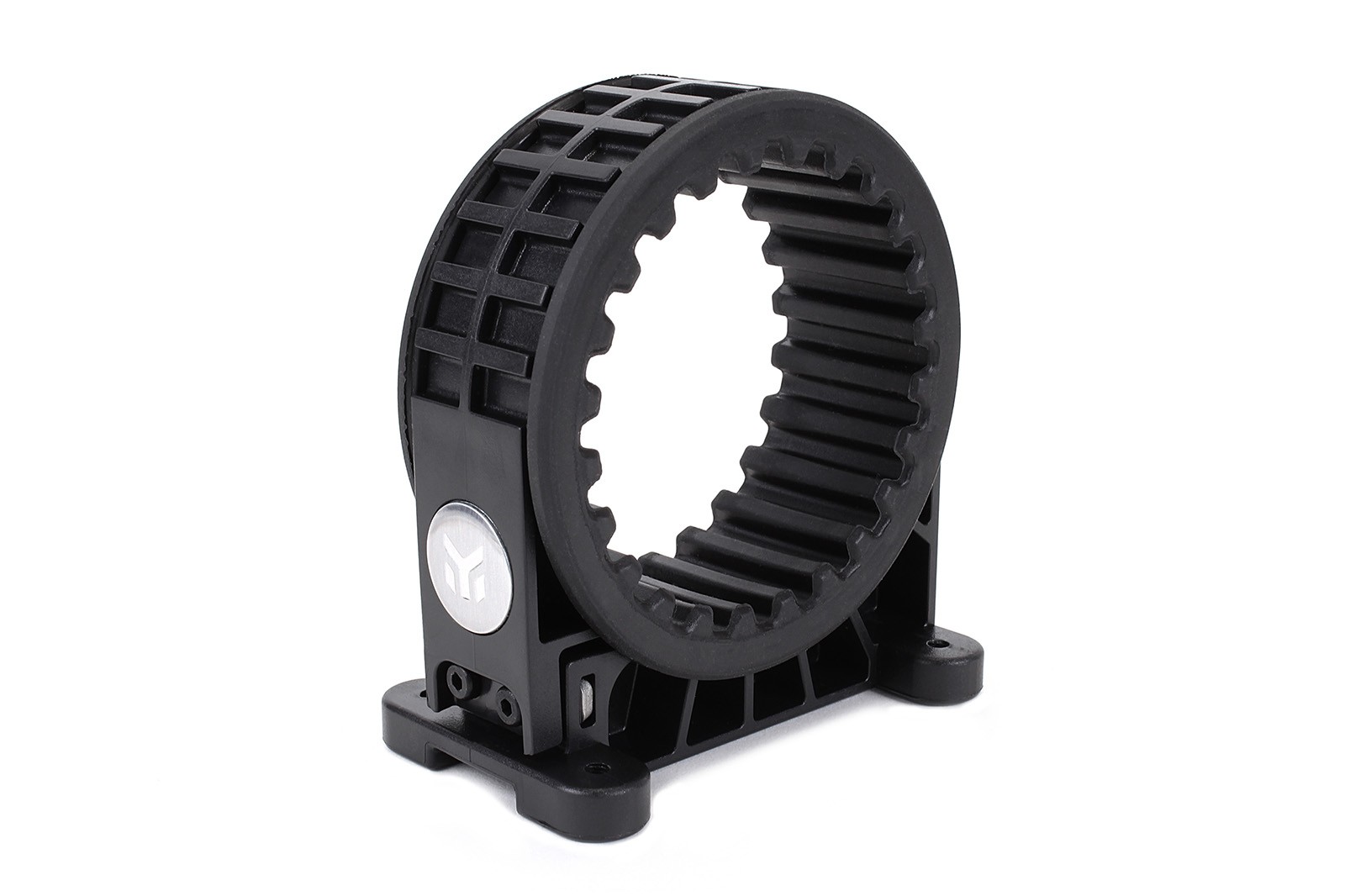

– Mounting clip with rubber insert
– Self-adhesive mounting hole pattern sticker
– Anti-vortex PU foam and 12mm OD plexiglass tube
– Mounting mechanism (incl. required Allen keys)
– Installation manual

Threads G1/4

Informations complémentaires

Poids 0.9 kg
