Custom MaxFin™ 25 micron Copper Splitter Fin Configuration utilizing 45% thinner fin material yielding up to 50% less pressure drop.
Unique fin configuration eliminates intra-louver accumulation of dust particles for trouble free operation.
Radically optimized 20 FPI (Fins Per Inch) fin density providing dramatically increased heat transfer surface area.
Custom low-profile 2-row 19.0 x 1.2mm MaxFlow™ tubes with twice the waterside surface area of the GTS and 60% frontal area reduction for superior low air-resistance aerodynamics and lower internal flow requirements.
Yields up to 45% more heat exchange capacity than the Black Ice® Xtreme in both Stealth or Performance modes.
Achieves Black Ice® Xtreme level performance in stealth mode (low-noise/low-airflow conditions).
M4 Threaded Screw Holes for easier mounting and greater adaptability.
Now standard G 1/4″ female threaded fittings.
Full high-temper brass structural construction for weight reduction and superior corrosion resistance.

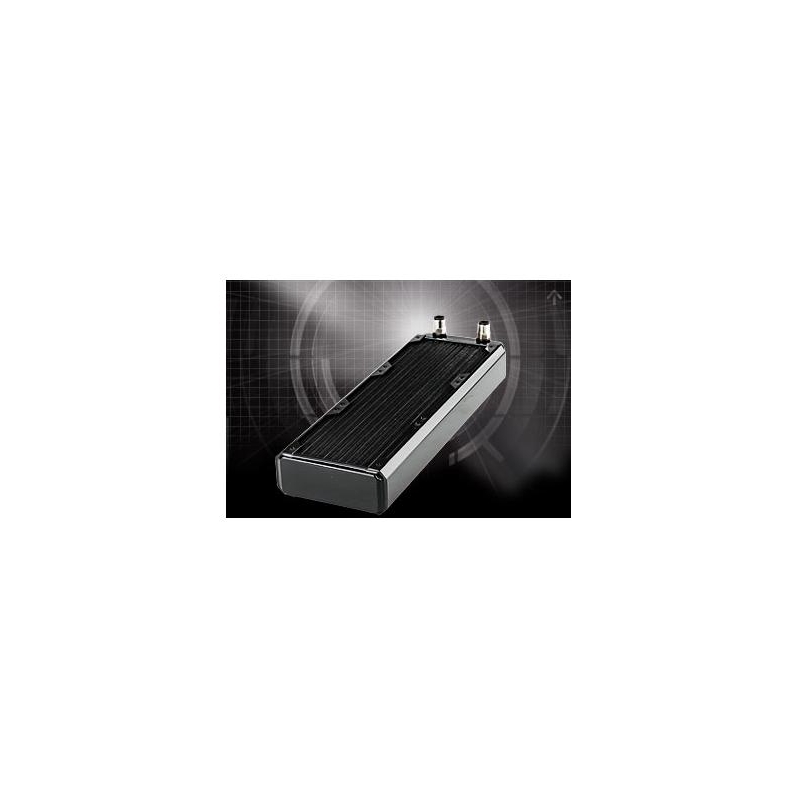

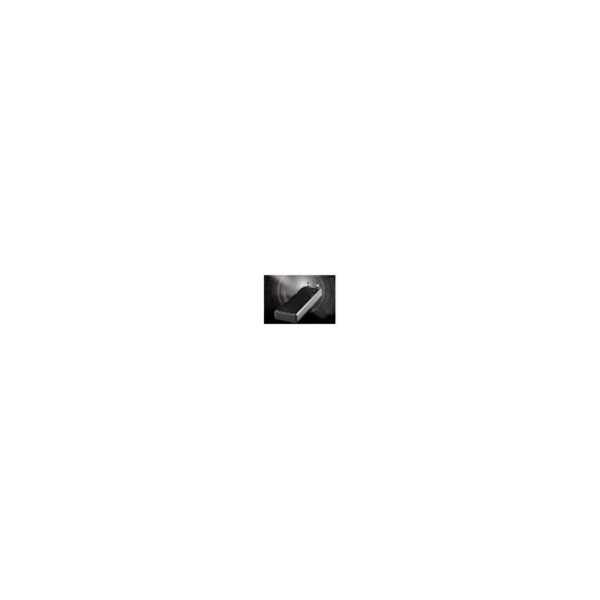

High performance compact radiator compatible as an upgrade to the Black Ice® Xtreme and most 120mm form factor radiators.
Uses 100% Non-corrosive water-solluble fluxing process.
Fully RoHS compliant.
Full electrostatic polyurethane painting finish for uniform coating with high temperature curing for increased finish durability.
Renowned Black Ice® quality.
Patent Pending Design.
