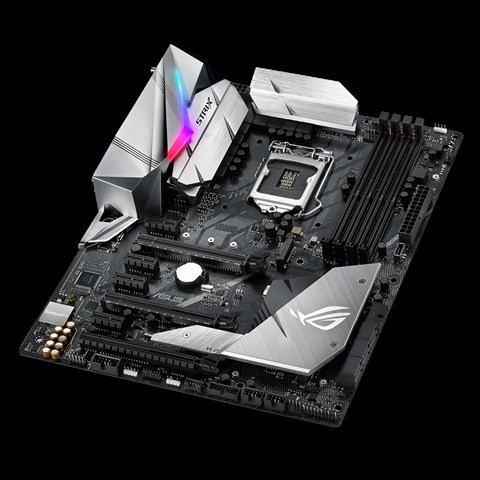

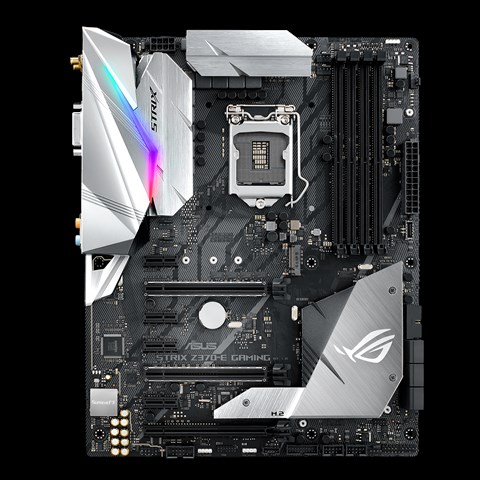

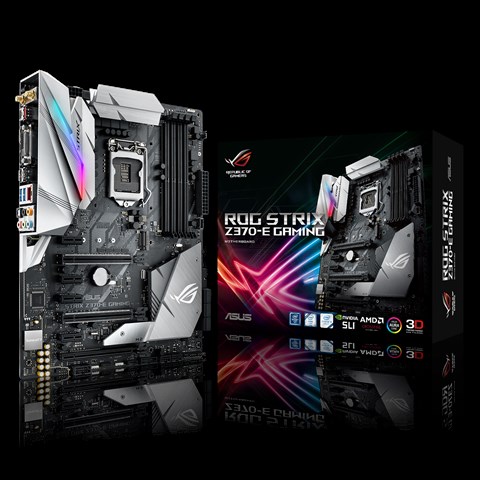

ASUS MB ROG STRIX Z370-E GAMING carte mère 1151

315,99

Carte mère gaming ATX Intel Z370 avec les LED RGB ASUS Aura Sync, le Wi-Fi 802.11 ac, la mémoire DDR4 4000 MHz, deux slots M.2, slot SATA à 6 Gb/s et un connecteur USB 3.1 Gen 2 sur le panneau avant

  • Processeurs Intel® Core™ 8e génération : compatible avec les processeurs au socket LGA1151
  • Aura Sync RGB : synchronise l’éclairage RGB avec de nombreux périphériques compatibles dont les bandes adressables RGB
  • Ventirad M.2 intégré : refroidit votre disque M.2 pour des performances de stockage durables et un système plus fiable
  • 5-Way Optimization : optimisation automatique du système pour des profils d’overclocking et de refroidissement parfaitement adaptés à votre système
  • Son gaming : SupremeFX S1220A avec Sonic Studio III. Tout un paysage sonore s’offre à vous pour vous plonger dans l’action
  • Connexion gaming : deux slots M.2 et connecteurs USB 3.1 Gen 2 Type-A et Type-C
  • Réseau gaming : technologies Intel® Gigabit Ethernet, LANGuard, GameFirst et Wi-Fi 802.11 ac avec antennes 2×2 et MU-MIMO
  • Gamer’s Guardian : ASUS Safeslot et composants de qualité pour une endurance ultime

Catégorie : GTIN: 4712900775174

Description

    • CPU
      Intel® for 8th Generation Core Processors
      Supports Intel® 14 nm CPU
      Supports Intel® Turbo Boost Technology 2.0
      * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
      * Refer to www.asus.com for CPU support list
    • Chipset
      Intel® Z370
    • Mémoire
      4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
      Dual Channel Memory Architecture
      Supports Intel® Extreme Memory Profile (XMP)
      * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
      * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    • Carte graphique
      Integrated Graphics Processor- Intel® HD Graphics support
      Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
      – Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / x @ Hz
      – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
      – Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
      Maximum shared memory of 1024 MB
      Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
      Supports up to 3 displays simultaneously
    • Multi-GPU Support
      Supports NVIDIA® 2-Way SLI™ Technology
      Supports AMD 3-Way CrossFireX™ Technology
    • Expansion Slots
      2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
      1 x PCIe 3.0/2.0 x16 (max at x4 mode)
      4 x PCIe 3.0/2.0 x1
    • Stockage
      6 x SATA 6Gb/s port(s),
      Support Raid 0, 1, 5, 10
      Intel® Optane™ Memory Ready *4
    • LAN
      Intel® I219V
      Anti-surge LANGuard
      ROG GameFirst Technology
    • Réseau sans fil
      Wi-Fi 802.11 a/b/g/n/ac
      Supports dual band frequency 2.4/5 GHz
      Supports MU-MIMO
    • Bluetooth
      Bluetooth V4.2
    • Audio
      Realtek® S1220A 8-Channel High Definition Audio CODEC
      – Dual Headphone Amplifiers
      – Impedance sense for front and rear headphone outputs
      – Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, – Supports
      – High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB SNR recording input (Line-in)
      – SupremeFX Shielding Technology
      – Supports up to 32-Bit/192kHz playback
      Audio Feature :
      – Optical S/PDIF out port(s) at back panel
      – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
      – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
      – Sonic Radar III
      – Sonic Studio III
    • USB Ports
      Intel® Z370 Chipset :
      6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board)
      Intel® Z370 Chipset :
      6 x USB 2.0 port(s)
      ASMedia® USB 3.1 Gen 2 controller : *6
      1 x USB 3.1 Gen 2 port(s)
      ASMedia® USB 3.1 Gen 2 controller :
      2 x USB 3.1 port(s)
    • ROG Exclusive Features
      ROG RAMCache II
      ROG CPU-Z
      ROG CloneDrive
      Overwolf
      GameFirst IV
      ROG Aura
      – Aura Lighting Control
      – Aura RGB Strip Headers
    • Special Features
      OC Design – ASUS PRO Clock Technology
      – Full BCLK range for extreme overclocking performance
      5-Way Optimization by Dual Intelligent Processors 5
      – Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
      TPU
      – Auto Tuning, TurboV, GPU Boost
      – Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
      Gamer’s Guardian:
      – DRAM Overcurrent Protection
      – Stainless Steel Back I/O
      – Highly Durable Components
      – DIGI+ VRM
      – SafeSlot
      ASUS Exclusive Features :
      – AI Suite 3
      – Ai Charger
      – ESD Guards
      ASUS EZ DIY :
      – ASUS CrashFree BIOS 3
      – ASUS EZ Flash 3
      ASUS Q-Design :
      – ASUS Q-Shield
      – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
      – ASUS Q-Slot
      – ASUS Q-DIMM
      Gaming Aesthetics :
      – 3D printing friendly
      – AURA-RGB Lighting
      Digi+VRM
      Turbo App
      M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

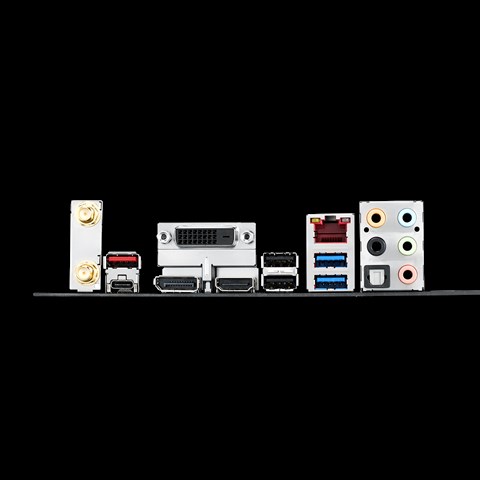

    • Back I/O Ports
      1 x DVI-D
      1 x DisplayPort
      1 x HDMI
      1 x LAN (RJ45) port(s)
      2 x USB 3.1 Gen 2 ()Type-A + USB Type-CTM
      1 x Optical S/PDIF out
      5 x Audio jack(s)
      2 x USB 3.1 Gen 1 (blue)
      1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2)
    • Internal I/O Ports
      1 x Aura Addressable Strip Header(s)
      1 x AAFP connector
      1 x RGB Header(s)
      1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
      1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
      6 x SATA 6Gb/s connector(s)
      1 x CPU Fan connector(s)
      1 x CPU OPT Fan connector(s)
      2 x Chassis Fan connector(s)
      1 x 24-pin EATX Power connector(s)
      1 x 8-pin ATX 12V Power connector(s)
      1 x System panel(s) (Chassis intrusion header is inbuilt)
      1 x Thermal sensor connector(s)
      1 x Clear CMOS button(s)
      1 x 5-pin EXT_FAN(Extension Fan) connector
      1 x 14-1 pin TPM connector
      1 x COM port header
      1 x AIO PUMP Header
      3 x 3D Mount screw port(s)
      1 x Thermal sensor connector
      1 x USB 3.1 Gen 2 front panel connector
      1 x CPU_OV jumper
      1 x M.2 Fan Header

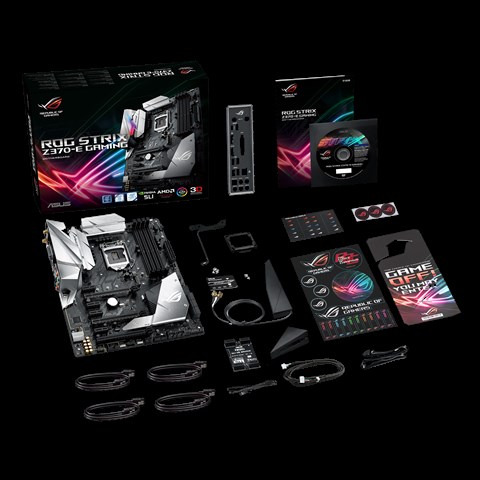

    • Accessories
      User’s manual
      ASUS Q-Shield
      1 x ASUS Fan Holder
      4 x SATA 6Gb/s cable(s)
      1 x M.2 Screw Package
      1 x CPU installation tool
      1 x Supporting DVD
      1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
      1 x Strix door hanger
      1 x CABLE TIE BLACK
      1 x SLI HB BRIDGE(2-WAY-M)
      1 x ROG Strix stickers
      1 x 10-in-1 ROG cable label
      ROG Fan Label
      1 x Extension Cable for RGB strips (80 cm)
      1 x Extension cable for Addressable LED
      1 x Thermistor cable(s)
      1 x 3D printing mount package
    • BIOS
      128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
    • Manageability
      WfM2.0, DMI3.0, WOL by PME, PXE
    • Système d´exploitation
      Windows® 10 64-bit
    • Form Factor
      ATX Form Factor
      30.5 inch x 24.4 inch ( 12 cm x 9.6 cm )
    • Remarque
    • Socket 1151



    • 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)*2



  • 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)

Informations complémentaires

Poids 1.4 kg
