Description
| Product Name | MasterBox 5 MSI Edition | |
| Model Number | MCX-B5S2-KWNN-03-MI | |
| Available Color | Black & Red with MSI logo | |
| Materials | Steel Body, Plastic Mesh Bezel | |
| Dimensions (LxWxH) | 500 x 220 x 475 mm | |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX | |
| Expansion Slots | 7 | |

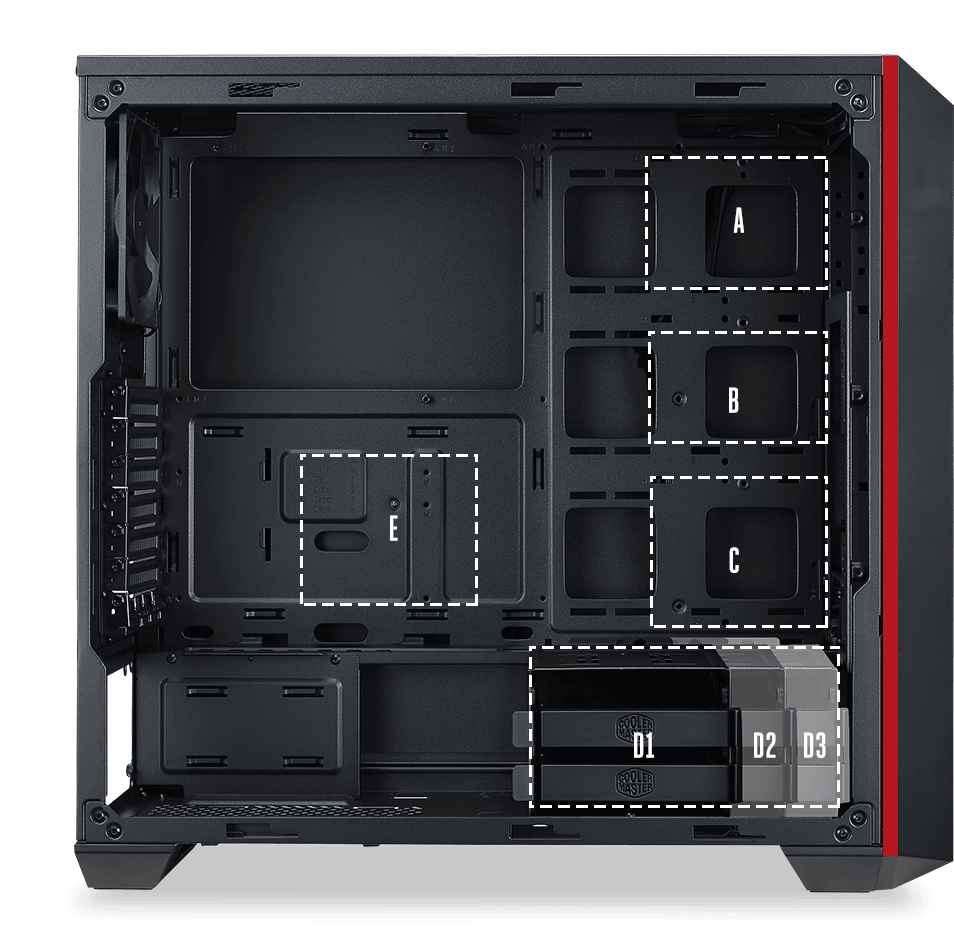

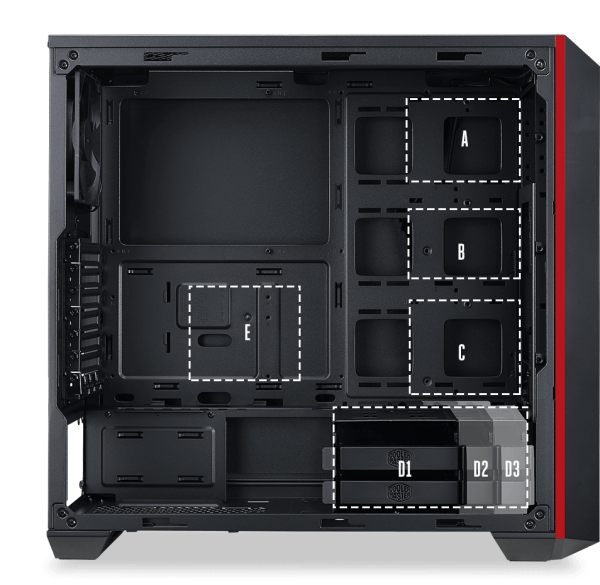

| Drive Bays | 5.25″ | No |

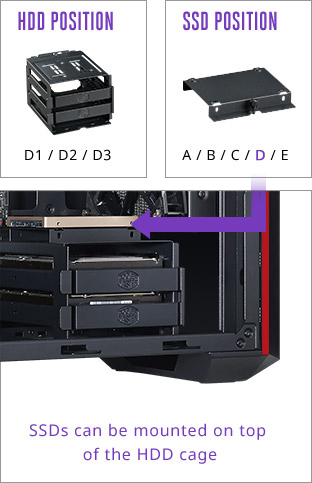

| Combo 3.5″ / 2.5″ | 2 | |
| SSD | 1 | |
| I/O Panel | USB 3.0 x 2, Audio in / out | |
| Pre-installed Fan(s) | Rear | 120mm x 1 |
| Fan Support | Front | 120mm x 3 / 140mm x 2 |
| Rear | 120mm x 1 | |
| Liquid Cooling Support | Front | 240mm / 280mm / 360mm radiator, up to 50mm thickness without fan |
| Rear | 120mm x 1 | |
| Clearance | CPU Cooler | 167mm / 6.5″ |
| PSU | 180mm / 7.1″ | |
| Graphics Card | 410mm / 16.1″ | |

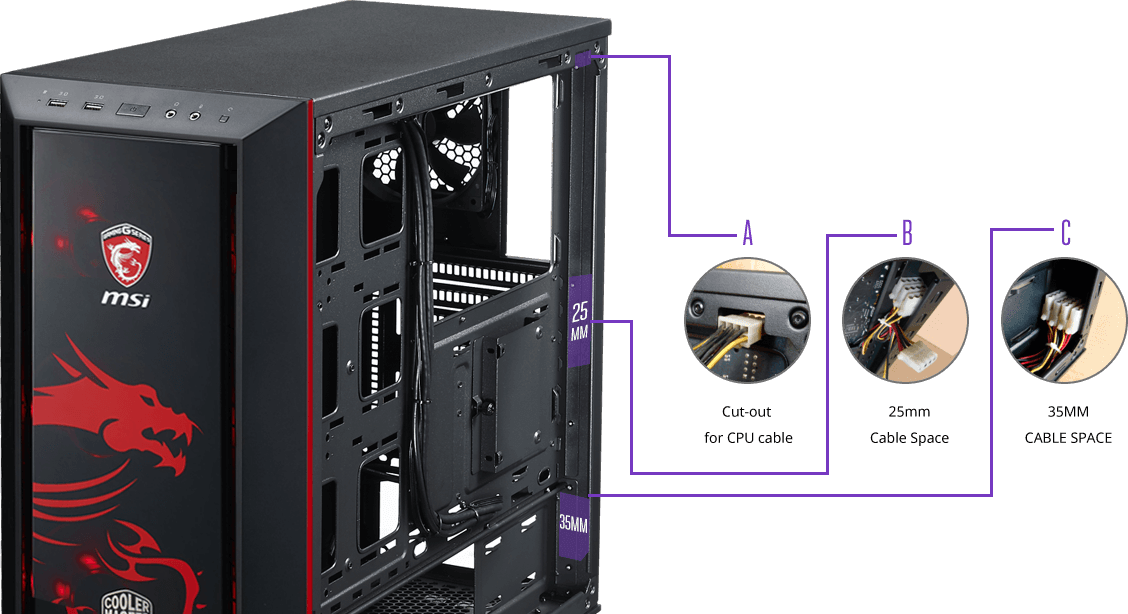

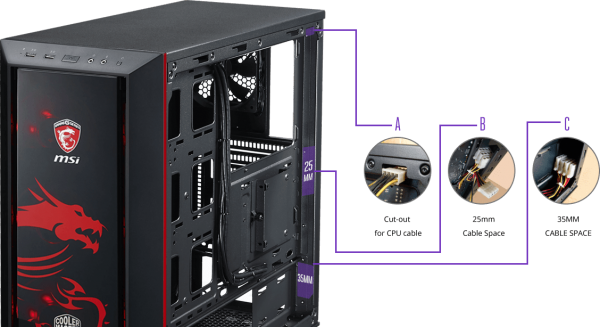

| Cable Routing | Behind Motherboard Tray | 25mm – 35mm |
| Power Supply Support | Bottom mount, ATX | |
| Dust Filters | Bottom | |
| EAN Code | 4719512058459 | |
| UPC Code | 884102031250 | |

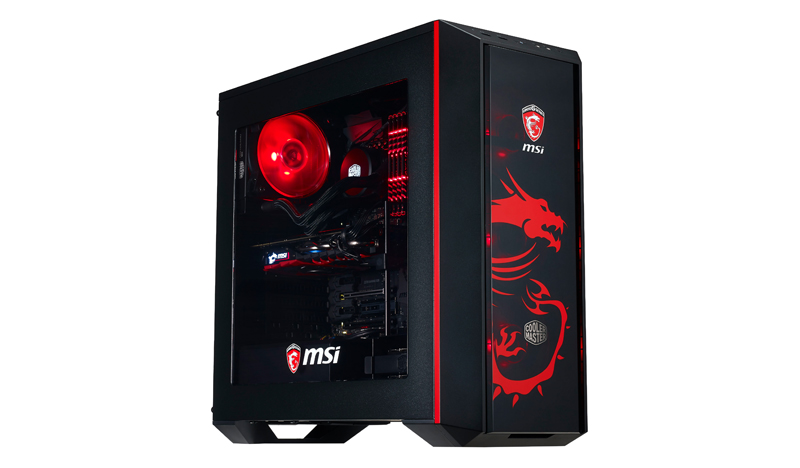

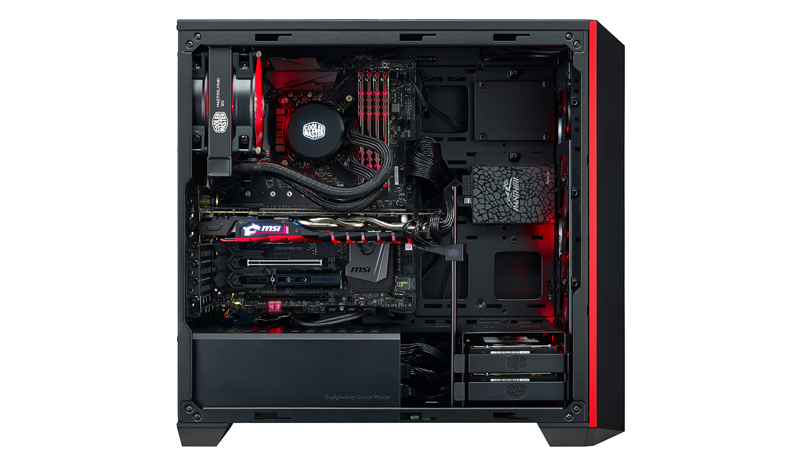

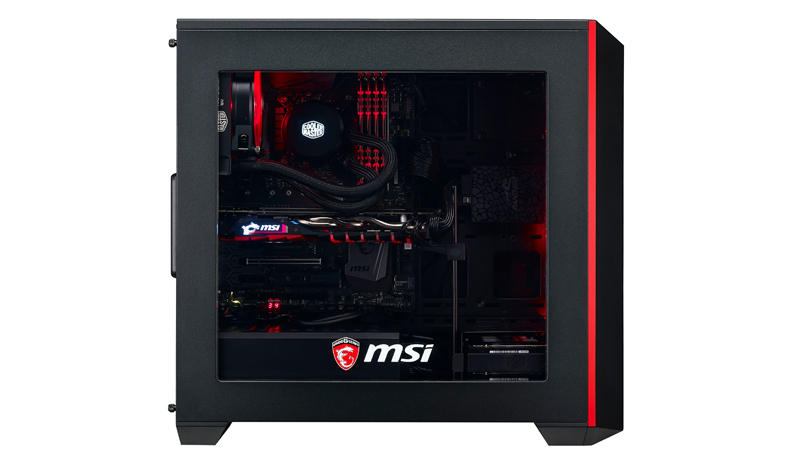

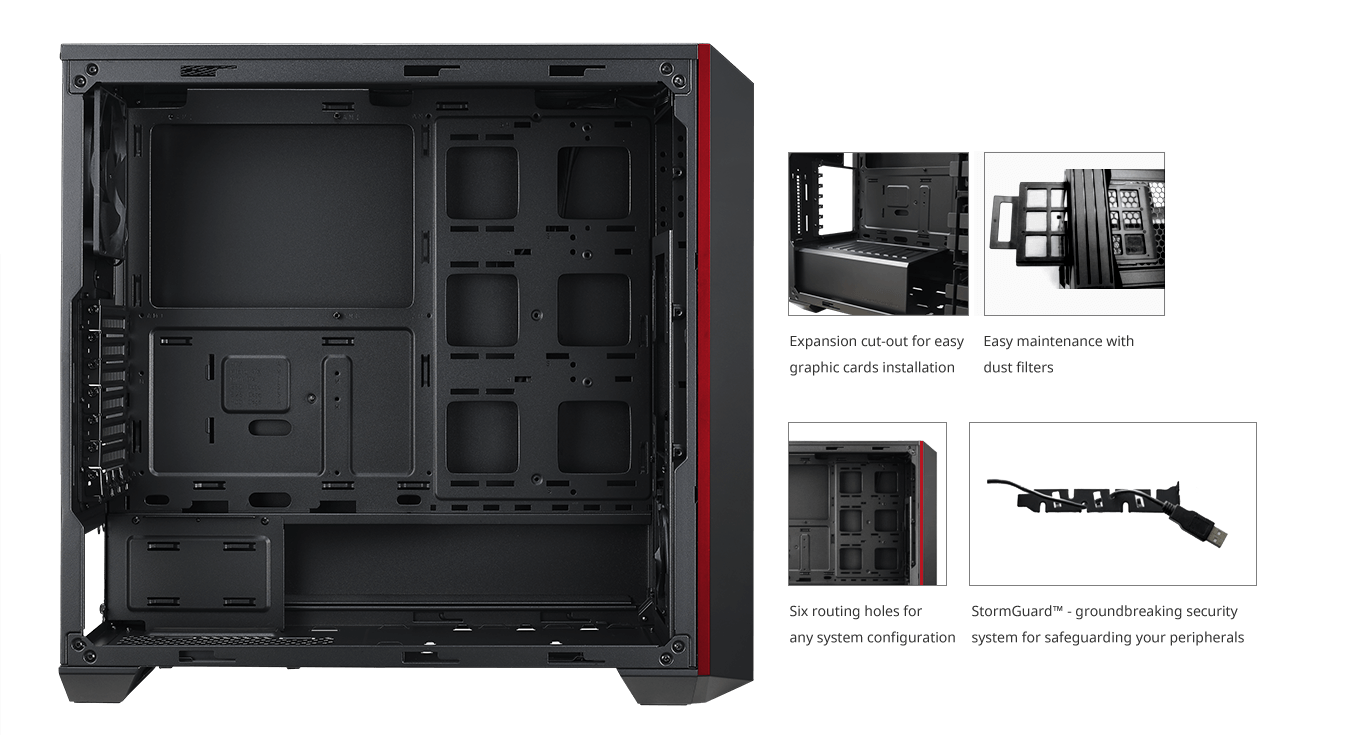

Les photos qui présentent du matériel dans le boitier, sont à titre de présentation, celui-ci n’est pas inclus avec le produit.
