Description

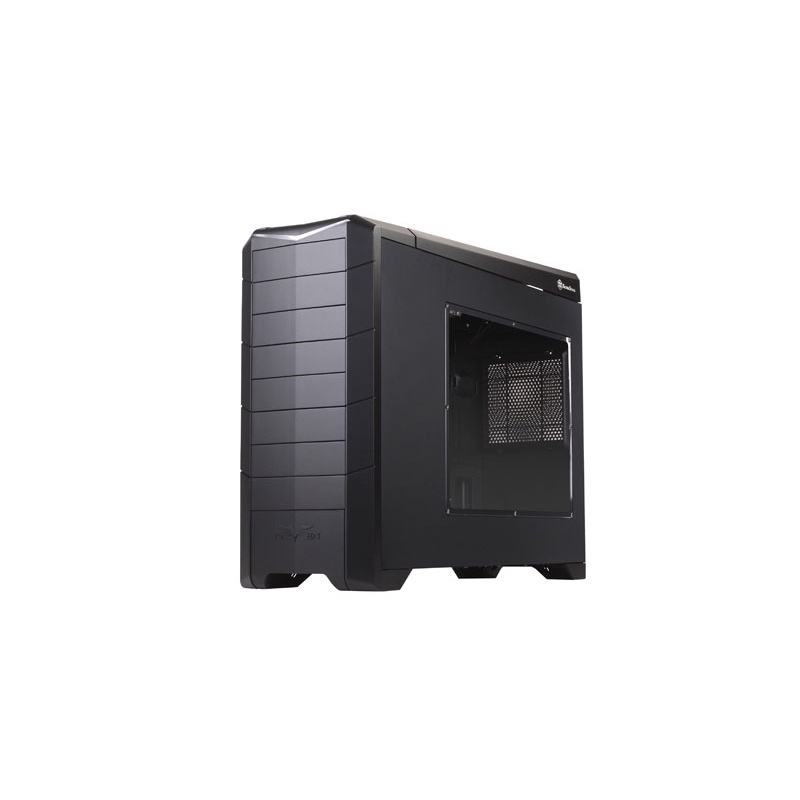

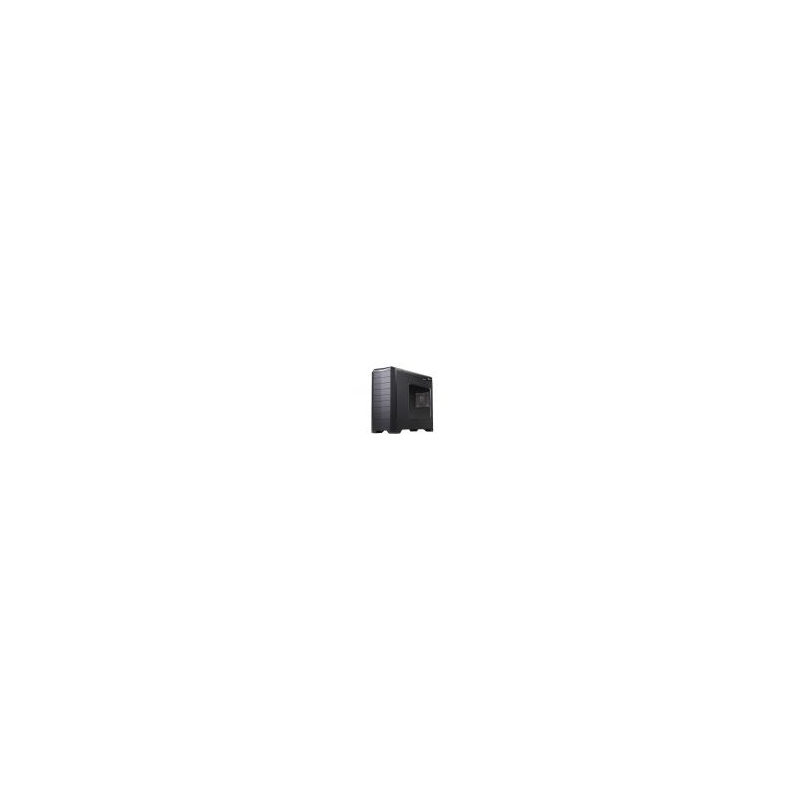

del No. SST-RV02B-E (black)
SST-RV02B-EW (black + window)
—
—
Material reinforced plastic outer shell, 0.8mm Steel body.
Color Matte black
Motherboard SSI CEB, ATX (maximum 12” x 11”) , Micro ATX
Multimedia —
Drive Bay External 5.25″ x 5
—
Internal 3.5″ x 5, 2.5″ x 1
Cooling System Front —
Rear —
Side —
Top 1 x 120mm exhaust fan, 950rpm, 18dBA
Bottom 3 x 180mm intake fan 700/1200rpm, 18/34dBA
Internal —
Expansion Slot 7
Front I/O Port USB2.0 x 2
audio x 1
MIC x 1
Power Supply 1 x optional standard PS2 (ATX)
Expansion Card Up to 12.2 inch
Limitation of CPU cooler 169mm
Limitation of PSU Unlimited
Net Weight 12.5kg
Dimension 212mm (W) x 503mm (H) x 643mm (D)
Extra One CP05 included for single hot-swappable SATA hard drive, additional CP05 can be purchased separately
