Description
H.D.T. (Heat-pipe direct touch) technology.
Support for Intel LGA775/1156/1366; AMD Socket K8/AM2/AM2+/AM3.
Dual fan installed option and Anti-vibration rubbers attached.
PWM fan to adjust the power of the fan efficiently.
Light weight.
High performance & easy installation.
3pcs Φ6mm high performance heat-pipes.

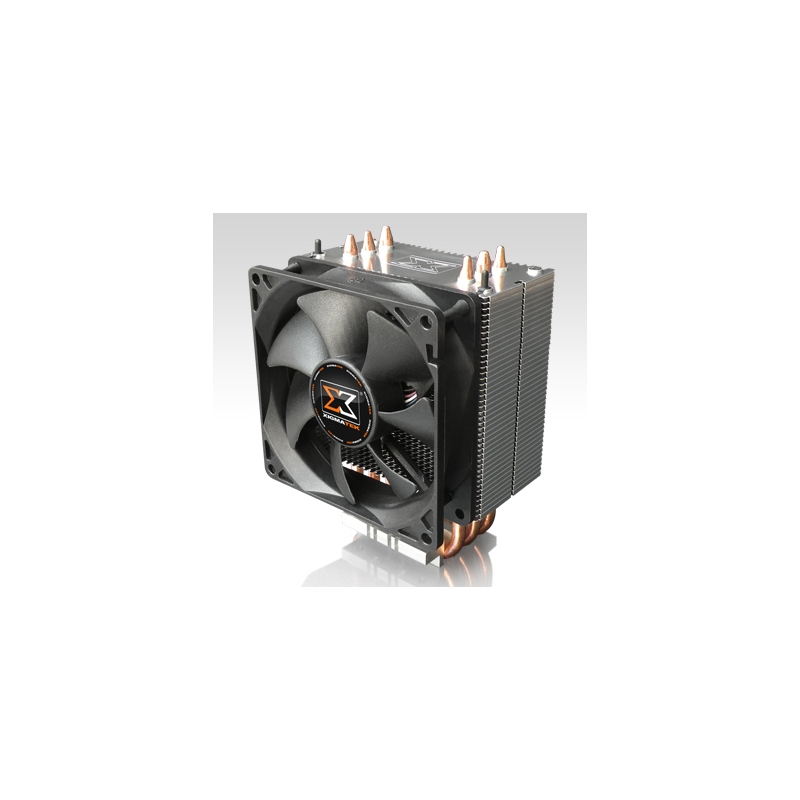

Product Name LOKI SD963
Product Number CAC-S9HH3-U06
Dimension 92(W) x 50(H) x 134(D) mm
Heat Sink Base Material H.D.T. (Heat-pipes Direct Touch)
Fin Material Aluminum Alloy
Heat-pipe SPEC Φ6mm
Q´ty 3 pcs.
Fan Dimension 92(W) x 92(H) x 25(D) mm
Voltage Rating 12V
Start Voltage ≥7V
Speed 1200~2800 R.P.M.
Bearing Type HYPRO Bearing
Air Flow 52 CFM
Air Pressure 3.7 mmH²O
Life Expectance 40,000 hrs
Noise Level 20~28 dBA
Connector 4 Pin with PWM
Weight 330g (w/o fan)
Thermal Resistance 0.18 °C/W
